The car mat cutting machine produced by DMS not only has high cutting precision, high speed, but more importantly, it can be used in one machine. An advanced and fast-changing knife has unparalleled diversity and is configured according to various processing materials. Different cutter heads. DMS-2516 foot pad cutting machine can not only be used to produce foot pads, but also can be used for qualitative cutting of seat cover, tail box pad and light pad. It is also suitable for cutting a variety of materials, a variety of non-metallic materials such as leather materials, fabrics. As long as you have a foot pad cutting machine, you can open a car interior processing factory, and buy a foot pad cutting machine is a gift version.
DMS offers cutting integrated solutions for automotive interior/foot pads/bags
DMS cutting is a double-knife automatic feeding intelligent cutting machine developed by our company to respond to market demand and specializes in special industries such as car cushions, car interiors and car mats. The outstanding features of this machine are low cost, high efficiency, high return, high degree of automation, automatic paving, automatic continuous processing, suitable for large-scale processing and production, greatly saving space and labor.
Applicable materials: leather, cloth, wool, flexible materials, synthetic materials, suitable for mats, four season mats, sandwich multi-layer mats, etc. Cars, large mats, wire mats, plush carpets, imported thick EVA Rubber floor carpet, latex foot pad, PVC foot pad, TPE rubber foot pad, imitation leather, leather, composite cotton, seat cover cutting.
It is widely used in the automotive supplies industry and is well received by manufacturers. The double-cutting tool is rich, the blade is cut, and it can be cut completely, half cut, and drawn. The reading instrument automatically recognizes the template conversion CAD and other format files, automatically typesetting, automatic nesting, automatic cutting, and automatic feeding.
Adaptor & Application Materials
-
Interior effect
Tool selection -
Interior effect
Tool selection -

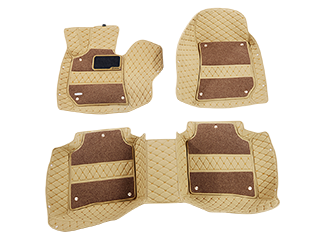

Two khaki car mats
Tool selection -
Interior effect
Tool selection -

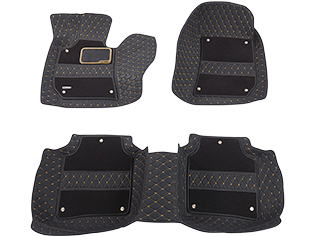

Two black car mats
Tool selection -

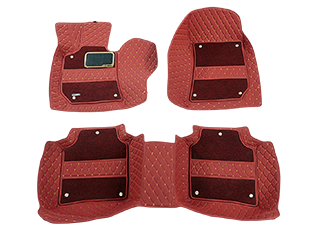

Two red car mats
Tool selection -

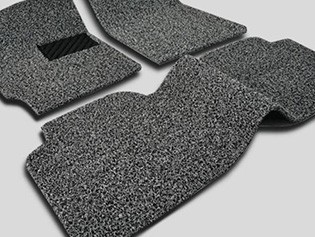

Foot pad
Tool selection
Head design
With a convenient and replaceable head design concept, the tool heads with different functions can be replaced and added according to actual needs.
Communication
The data interface is a Gigabit network interface, which enables remote upgrade and maintenance, and the transmission speed is fast and the distance is long.
Countertop
Adopting advanced and mature rolling table design, aluminum “honeycomb” vacuum adsorption platform maintains a flat cutting platform and improves cutting precision.
Control System
Independent research and development of human-machine interface operating system, humanized design, intelligent recognition of knife cutting, fast capture of cutting targets.
Imported felt
Imported felt, wear-resistant, breathable, ensuring high flatness of the cutting platform.
Collision avoidance
Safety anti-collision system to ensure the safety of operators.
Digital cutting machine software features
DMS digital cutting machine adopts self-developed CAM software, and user requirements are perfectly integrated into software design. It is a fully automatic intelligent cutting system that combines the three advantages of performance, speed and quality, which can complete full cutting, half cutting, boring and milling, and quickly. Various processes such as punching, crease, marking, etc., the operation is simple and convenient, the function is rich and practical, and the tool quick change module can meet the customization requirements of the user.
Schematic diagram of the cutting process
Automotive cutting machine cutting Technical Parameters
Main technical parameters of the equipment
| Technical parameters / model | DMS-2516A |
| Multi-function | Tools can be easily changed, with ornamental engraving, milling, vibration cutting, half cutting and creasing, drawing, the cursor position and optional precise camera position |
| Safety device | Using infrared sensors, respondive, safe |
| Moving speed | 800-1500mm/s |
| Cutting speed | 200-1200mm/s(according to different cutting materials) |
| Cutting thickness | 40mm(More than 40mm can be customized |
| Material Fixed | Vaccum System |
| Cutting tolerance | ±0.05mm |
| Servo resolution | ±0.01mm |
| Transmission interface | Ethernet |
| Network transmission distance | ≤350 m |
| Buffer capacity | 2GB |
| Transmission system | Import (Digital servo motor、Linear guide、Synchronous belt、Screw、Gear) |
| Normal power | 7.5-11KW |
| Voltage | 380V± 10% |
| Working Range | 2500×1600mm |
| Max feeding width | 1600mm |
| Product size | 3521×2186×1280mm |
| Packing Size | 3670×2340×1500mm |
| Gross Weight | 1150KGS |
