DMS intelligent cutting system, equipped with camera positioning, can achieve precise cutting of both sheet and coil, and high efficiency. Especially for the cutting of the special-shaped drawing, the quality of the manual cutting is high, and the efficiency is improved by more than 3 times; the cutting efficiency of the regular graphic is about 2 times higher than that of the manual.
DMS Shaped Cutting Machine
Mainly for the post-processing of the advertising industry, providing high-performance, high-speed, high-quality integrated intelligent cutting solutions, quickly completing all kinds of processes such as full cutting, half cutting, boring and milling, drilling, crease, marking, etc. Drawing cutting puzzles, to meet the production goals of less batch, multi-order, multi-style. The equipment is equipped with high-precision CCD positioning and cutting function, which can easily complete various flexible material cutting tasks, process high-quality advertising products faster, more stable and more accurately, minimizing cutting cost, improving cutting efficiency and allowing customers Maintain a high level of competition in the industry.
Applicable materials: PP paper, car stickers, KT board, Chevron board, stickers, corrugated paper, honeycomb paper, etc.
Adaptor & Application Materials
-

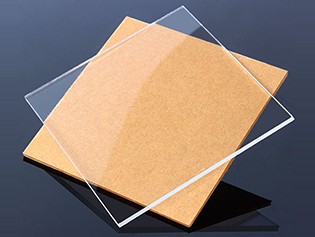

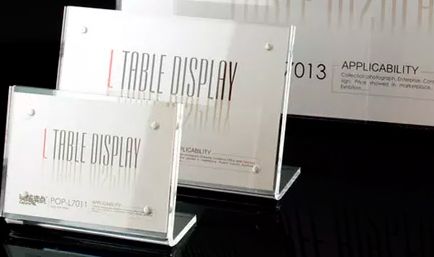

Acrylic
Tool selection -

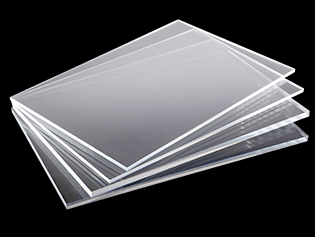

Acrylic
Tool selection -

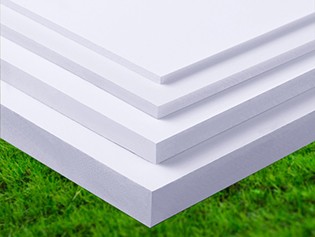

Chevron board
Tool selection -

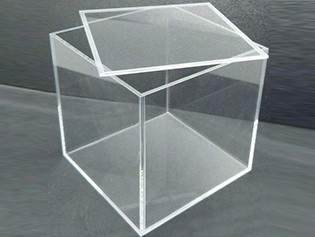

Acrylic
Tool selection -

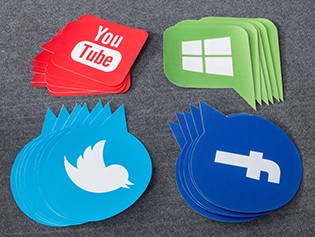

Car sticker
Tool selection -

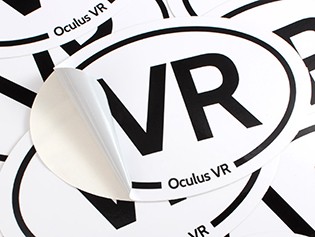

Pp adhesive
Tool selection -

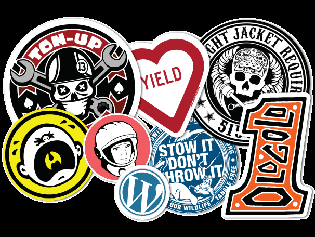

Car sticker
Tool selection -

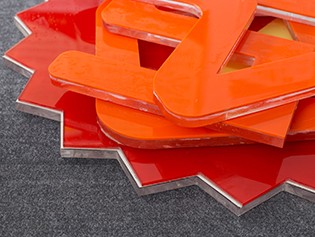

PVC board
Tool selection
Head design
With a convenient and replaceable head design concept, the tool heads with different functions can be replaced and added according to actual needs.
Communication
The data interface is a Gigabit network interface, which enables remote upgrade and maintenance, and the transmission speed is fast and the distance is long.
Countertop
Adopting advanced and mature rolling table design, aluminum “honeycomb” vacuum adsorption platform maintains a flat cutting platform and improves cutting precision.
Control System
Independent research and development of human-machine interface operating system, humanized design, intelligent recognition of knife cutting, fast capture of cutting targets.
Imported felt
Imported felt, wear-resistant, breathable, ensuring high flatness of the cutting platform.
Collision avoidance
Safety anti-collision system to ensure the safety of operators.
Digital cutting machine software features
DMS digital cutting machine adopts self-developed CAM software, and user requirements are perfectly integrated into software design. It is a fully automatic intelligent cutting system that combines the three advantages of performance, speed and quality, which can complete full cutting, half cutting, boring and milling, and quickly. Various processes such as punching, crease, marking, etc., the operation is simple and convenient, the function is rich and practical, and the tool quick change module can meet the customization requirements of the user.
Schematic diagram of the cutting process
Advertising cutting machine cutting Technical Parameters
Main technical parameters of the equipment
| Technical parameters / model | DMS-2516A |
| Multi-function | Tools can be easily changed, with ornamental engraving, milling, vibration cutting, half cutting and creasing, drawing, the cursor position and optional precise camera position |
| Safety device | Using infrared sensors, respondive, safe |
| Moving speed | 800-1500mm/s |
| Cutting speed | 200-1200mm/s(according to different cutting materials) |
| Cutting thickness | 40mm(More than 40mm can be customized |
| Material Fixed | Vaccum System |
| Cutting tolerance | ±0.05mm |
| Servo resolution | ±0.01mm |
| Transmission interface | Ethernet |
| Network transmission distance | ≤350 m |
| Buffer capacity | 2GB |
| Transmission system | Import (Digital servo motor、Linear guide、Synchronous belt、Screw、Gear) |
| Normal power | 7.5-11KW |
| Voltage | 380V± 10% |
| Working Range | 2500×1600mm |
| Max feeding width | 1600mm |
| Product size | 3521×2186×1280mm |
| Packing Size | 3670×2340×1500mm |
| Gross Weight | 1150KGS |
