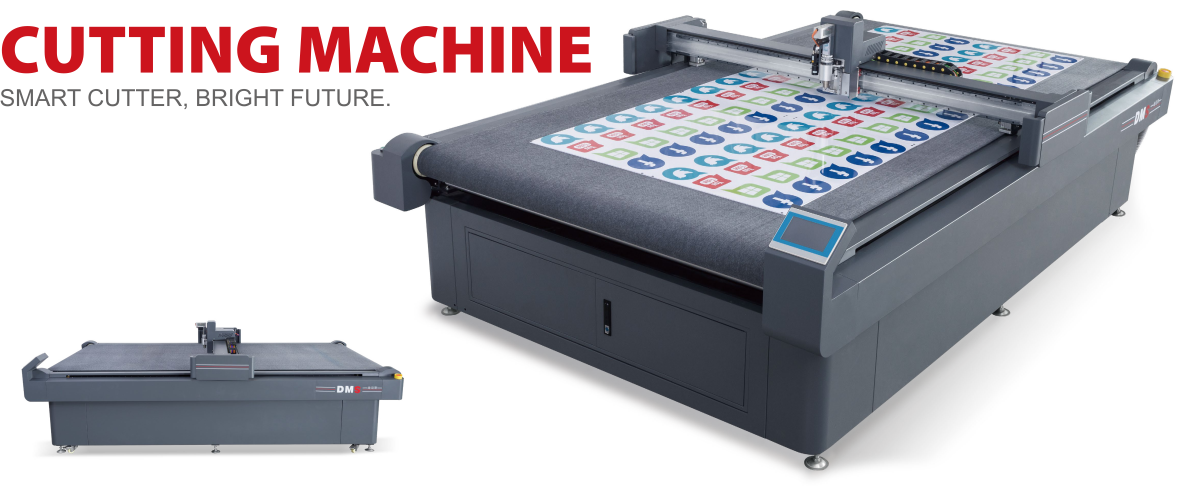

DMS special-shaped cutting machine is mainly used for CNC cutting of flexible materials such as carbon fiber, glass fiber, soft glass and honeycomb structure in composite materials. It is specialized in sports equipment, automobile manufacturing, aerospace, yacht, teaching, green energy, communication equipment, etc. Get the actual application.
DMS composite industry computer cutting machine:
1. Overcut optimization function: Using CAM software independently developed by TPS, system optimization of tool physical overcut phenomenon, maximum reduction of graphic contour, bringing perfect cutting effect to customers
2. Intelligent countertop compensation function: the flatness of the countertop is detected by a high-precision distance detector, and the plane is corrected in real time by software to ensure high-quality cutting effect.
3. Positive and negative cutting function: combined with the desktop detection function to realize intelligent positive and negative graphic cutting function
4. Automatic tool setting function: fast and simple automatic tool setting system, using fiber laser sensor to accurately detect the tool and improve the efficiency of tool setting
5. Tool quick change module: simple and efficient tool holder quick change system, making operation easier and convenient
6. Multi-task efficient cycle cutting, intelligent adsorption configuration
Adaptor & Application Materials
-

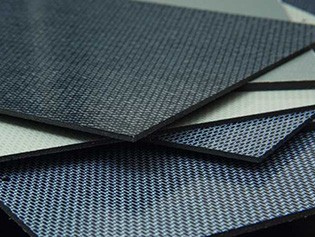

Carbon fiber products
Tool selection -

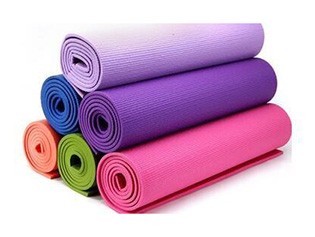

Yoga mat
Tool selection -

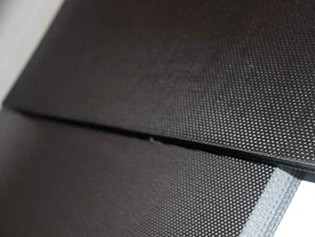

carbon fiber
Tool selection -
Soft glass
Tool selection -

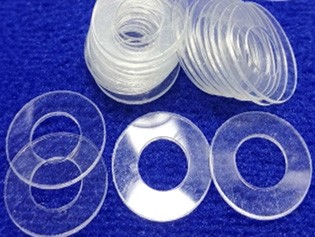

PVC gasket
Tool selection
Head design
With a convenient and replaceable head design concept, the tool heads with different functions can be replaced and added according to actual needs.
Communication
The data interface is a Gigabit network interface, which enables remote upgrade and maintenance, and the transmission speed is fast and the distance is long.
Countertop
Adopting advanced and mature rolling table design, aluminum “honeycomb” vacuum adsorption platform maintains a flat cutting platform and improves cutting precision.
Control System
Independent research and development of human-machine interface operating system, humanized design, intelligent recognition of knife cutting, fast capture of cutting targets.
Imported felt
Imported felt, wear-resistant, breathable, ensuring high flatness of the cutting platform.
Collision avoidance
Safety anti-collision system to ensure the safety of operators.

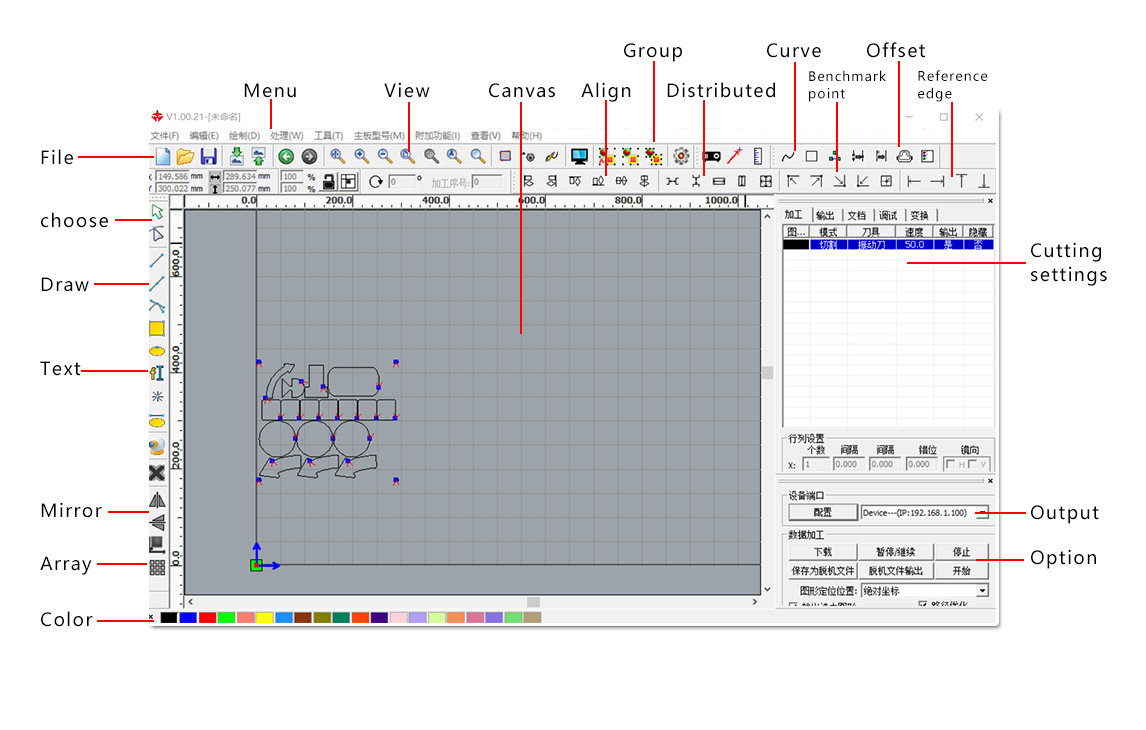

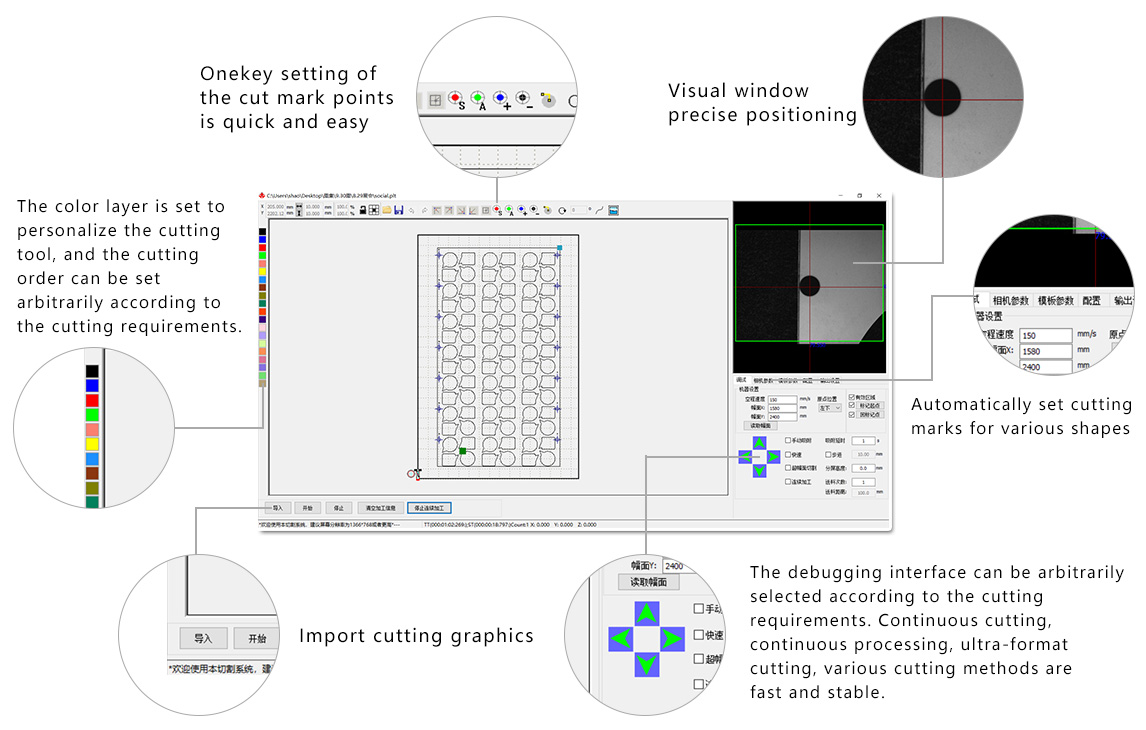

Digital cutting machine software features
DMS digital cutting machine adopts self-developed CAM software, and user requirements are perfectly integrated into software design. It is a fully automatic intelligent cutting system that combines the three advantages of performance, speed and quality, which can complete full cutting, half cutting, boring and milling, and quickly. Various processes such as punching, crease, marking, etc., the operation is simple and convenient, the function is rich and practical, and the tool quick change module can meet the customization requirements of the user.

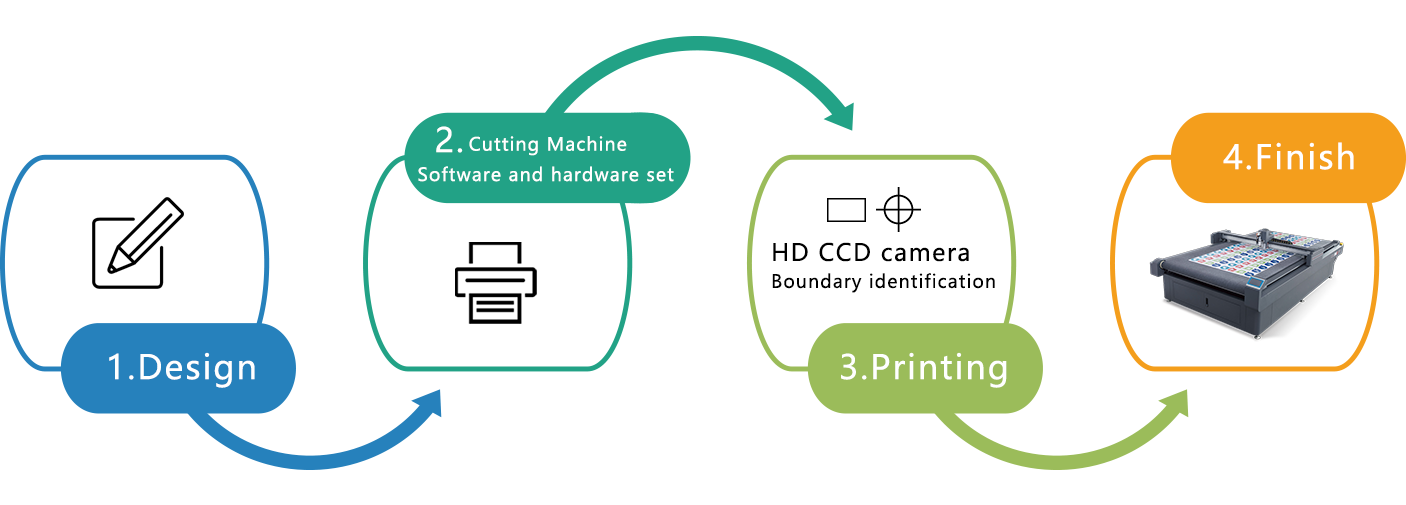

Schematic diagram of the cutting process
Composite cutting machine cutting Technical Parameters
Main technical parameters of the equipment
| Technical parameters / model | DMS-2516A |
| Multi-function | Tools can be easily changed, with ornamental engraving, milling, vibration cutting, half cutting and creasing, drawing, the cursor position and optional precise camera position |
| Safety device | Using infrared sensors, respondive, safe |
| Moving speed | 800-1500mm/s |
| Cutting speed | 200-1200mm/s(according to different cutting materials) |
| Cutting thickness | 40mm(More than 40mm can be customized |
| Material Fixed | Vaccum System |
| Cutting tolerance | ±0.05mm |
| Servo resolution | ±0.01mm |
| Transmission interface | Ethernet |
| Network transmission distance | ≤350 m |
| Buffer capacity | 2GB |
| Transmission system | Import (Digital servo motor、Linear guide、Synchronous belt、Screw、Gear) |
| Normal power | 7.5-11KW |
| Voltage | 380V± 10% |
| Working Range | 2500×1600mm |
| Max feeding width | 1600mm |
| Product size | 3521×2186×1280mm |
| Packing Size | 3670×2340×1500mm |
| Gross Weight | 1150KGS |
